Qsee Mix 5MP 8-CH 2TB PIR DVR System with 4PCs Analog Cameras, Two 4MP PT WiFi Cameras
-
8-channel 5MP DVR with 4 PIR analog cameras
-
Hestia 3T 3MP PT WiFi camera
Shipping & Returns
Free shipping within United States.
Due to the increase of orders during the peak season, the order processing time may be delayed 1-3 business days than usual. Thank you for the patience and understanding.
Make sure to read and understand the return policy before making a purchase. Qsee support returns under specific conditions.
Compatibility
The Hestia 3T WiFi cameras only supports 2.4Ghz WiFi.
The DVR is compatible with the 5MP analog cameras QH05YC.
Please note that the protocol of PIR detection technology is device-specific. The PIR function will not work if the Qsee DVR access to analog PIR cameras from other brands or old Q-see company, or the Qsee PIR camera is connected to other DVR.
HD Resolution
Weather Resistant
PIR Motion Detection
Vehicle Detection
Mobile Access
Get the Power of 5MP HD Clarity
At the core of the analog cameras lies a robust 5MP image sensor, ready to redefine your surveillance experience. With a wider field of view than QP05YC, the PIR cameras provide more expansive coverage, ensuring you have eyes on a broader area. Embrace the promise of exceptional clarity and coverage, witness every detail, every color, and every movement with precision.
IR Night Vision and PIR Sensor Synergy
The QH08045FR boasts an IR night vision feature coupled with PIR (Passive Infrared) sensor. This powerful combination allows the DVR system to excel in low-light and pitch-black conditions. The IR night vision provides a clear and detailed monochromatic view, illuminating the surveillance area with invisible infrared light. Meanwhile, the PIR sensor detects any heat-emitting objects, such as humans or animals, triggering swift alerts and recordings.
Elevating Security, Connectivity, and Convenience
Embrace the versatility of our camera, which safeguards your home or business while providing tender vigilance for your precious bundle of joy.
Features
HD Resolution
The 3MP WiFi indoor cameras can capture clear and smooth image. It is equipped with 6pcs IR LEDs and 3.6mm lens to provide excellent night vision up to 26.3ft, 100° viewing angle to see what happens at your home.
2-way Talk & Call Button
With the 2-way audio plus call button feature, not only can you communicate with others through your security camera, but anyone who taps on the call button can also initiate a call on the Qsee app.
Pan & Tilt Function
Get a visual of the entire scene with 355° Pan & 75° Tilt visibility, providing you with a comprehensive view of the room. With easy pan and tilt control from Qsee app focus on what you care about more accurately anywhere.
Motion Detection & Tracking
The camera can accurately identify and follow any movement within its field of view. When any motion is detected, the app will alert you with instant notifications and the camera will track and record the motion which was detected.
Flexible Storage
Videos can be securely stored on a local SD card (up to 128GB, sold separately), which you can access and playback via Qsee app. If you are worried about losing recordings from SD card, you can choose to store recordings in Qsee cloud.
Easy to Set Up
Simply power on the camera, connect it to the Qsee app via 2.4GHz WiFi (not support 5GHz), and in less than 10 minutes, you'll be up and running, ready to begin your seamless surveillance.
Ultra HD Resolution
The 5MP wired security system delivers stunningly sharp and detailed video footage, ensuring every detail is captured with remarkable precision. Enjoy unparalleled image quality, providing you with invaluable insights.
Infrared Night Vision
Explore the infrared night vision, combining PIR sensor with an incredible range of up to 82 feet. The IR night vision provides a clear and detailed monochromatic view in low-light and pitch-black conditions.
IP67 WeatherProof
This camera boasts an IP67 weather-resistant rating, offering robust protection year-round. Its durable housing is designed to withstand various conditions, including rain, wind, extreme temperatures, and humidity.
Motion, Person, Vehicle Detection
The feature ensures precise detection of motion, human presence, and even car movement. Stay informed and receive instant alerts, keeping you aware of any potential threats or activities within the monitored area.
H.265 Video Compression
Experience the benefits of H.265 compression. With up to 50% reduced bit rate compared to H.264, it delivers high-quality video, lower data consumption, and faster downloads, all at a low cost.
Remote Access
With Qsee PC client and mobile app, you can stay connected to your surveillance setup on-the-go. Whether you're at the office or traveling, monitor your cameras and view live feeds with ease.
Installation
You can check more details by the article: How to Connect Device to Your Phone via Qsee App?
1. How to install a hard drive to Qsee DVR
2. How to set up Qsee DVR system?
Specification
| Security System | Model No. | QH08045FR |
| Configurations | 1*8CH DVR(built-in 2T HDD) with 4* Cameras | |
| DVR System | Video Compression | H.265/H.264 |
| Operating | Embedded Linux | |
| Resolution | 2560*1440;1920*1080;1280*1024;1280*720 | |
| Output Signal | TVI;AHD;CVI;CVBS;IP;self-adaption | |
| Video | Preview | 8CH 5MP;1080P;720P;960H |
| Playback | 8CH 5MP;1080P;720P;960H | |
| Recording Mode | Regular /Manual/Event | |
| Audio | Audio Out/In | 4CH/1CH |
| Storage | Interface Type | 1 SATA Interface |
| Capacity | Up to 10TB capacity for each disk | |
| Backup | U-Disk | Yes |
| USB | Yes | |
| File format | DAV、AVI | |
| Network | Network Protocol | MSIP,TCP/IP, DHCP, Cloud,P2P,DDNS, NTP, SMTP,ONVIF |
| Features | Motion Detection | Support 8CH |
| Video Loss Detection | Support 8CH | |
| Human Detection | Support 8CH | |
| Car Detection | Support 8CH | |
| PIR Detection | Support 8CH | |

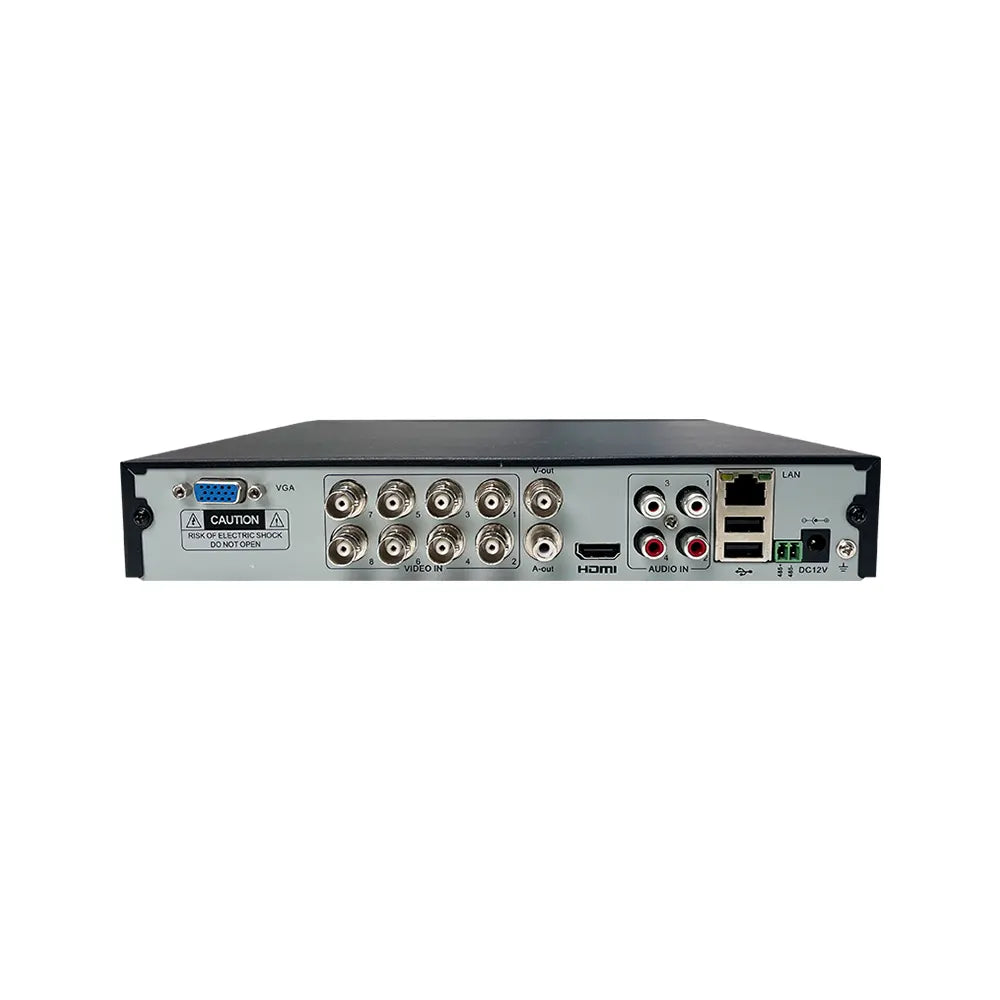

| Interface | BNC Input | 8* BNC IN |
| BNC Output | 1* BNC OUT | |
| HDMI Output | 1* HD Interface | |
| VGA Output | 1* VGA Interface | |
| CVBS Output | 1* CVBS Interface | |
| RS485 Output | 1* RS485 Interface | |
| Network Interface | 1*100 / 1000 Mbps Ethernet | |
| USB Interface | 2*USB 2.0 (support upgrade, backup, mouse) | |
| General(DVR) | Working Temperature | -10°C ~ +55°C (14 °F ~ 131 °F) |
| Power Supply | DC 12V/2A | |
| Dimensions | 255 x 225 x 42mm | |
| Weight | 1.8kg | |
| Camera | Image Sensor | 5MP 1/2.5" CMOS |
| Resolution | 2592*1944 | |
| Image System | NTSC/PAL | |
| PIR | 1*PIR module | |
| PIR Angle | 80° | |
| PIR Detection Distance | 5M | |
| Light ON | 1 Lux @ (F2.0, AGC ON) | |
| Lens | Fixed 3.6mm | |
| LEDs | 18 PCS SMD Light | |
| SNR | >52dB（AGC off） | |
| Night Vision Distance | 20m | |
| Video Frame Rate | 5.0MP@20fps/12.5fps | |
| Video Output | TVI/AHD/CVI/CVBS(Default TVI) | |
| General(Camera) | Power Supply | 12VDC ± 10 %; |
| Operating Temperature | -20° C ~+ 50° C | |
| Operating Humidity | 90% or less | |
| Protection Level | IP66 | |
| Power Consumption | Max. 3W | |
| Material | Plastic | |
| Dimensions | 169.5*63*68mm | |
| Weight | 0.2kg | |
| Kits | Package Size | 360 x 95 x 275mm |
| Kits Weight | 4.5kg |
| Model | Hestia 3T | |
| System | Image Sensor | 3MP 1/2.7'' CMOS |
| Image Compression | H.265 | |
| Resolution | 2304*1296(SHD) 1080*720(HD) 640*360(SD) | |
| Frame | 15fps | |
| Lens | Fixed; 3.6mm | Angle Viewing 100° |
| LED | 8pcs Invisable IR LED | Night Vision 5-8m |
| Connect | Wireless Network | 2.4GHz(IEEE 802.11b/g/n) |
| WiFi Rate | 150Mbps(Max) | |
| Connect Way | Scan QR Code | |
| Wired Network | Not Support | |
| Pan&Tilt | Horizontal | 355° |
| Vertical | 35° | |
| Features | Call Button | Support |
| Human Detection | Support | |
| Sound Detection | Support | |
| Preset Position | Support | |
| Motion Detection | Support | |
| Motion Tracking | Support | |
| Privacy Mode | Support | |
| Storage | Local Storage | MicroSD Card(Max 128G) |
| Cloud Storage | Qsee Cloud | |
| Other | Version of Phone |
Android 6.0 or above, iOS 12.0 or above |
| APP Name | Qsee-smart home | |
| General | Power Supply | 5V/1A |
| Working Temperature | -10° C to 45° C | |
| Storage Temperature | -30° C to 50° C | |
| Working Humidity | 90% or less | |
| Material | Plastic-ABS | |
| Dimensions | 11.7 x 7.3 x 7.3cm | |
| Weight | 175g | |
